Lighting and AC/DC device control with self-powered wireless switches (Hillstate and IPark apartments)

Site: Hillstate and IPark apartment complexes

Self-powered wireless switches were installed in the common areas of new apartment complexes to control lighting without wall work, wiring or batteries.

1. Purpose

• A power-free wireless switch system using self-powered sensors.
• Hyundai E&C apartments needed a power-free switch system that is easy to install and maintain in common areas.
• Applied power-free wireless self-powered switches that need no wall work, wiring or batteries.
• Dust- and water-resistant (IP57), so they can be used in a wide range of indoor and outdoor spaces.
• Reliability verified through 100,000-cycle durability and wireless signal transmission tests.

2. Benefits

• Self-powered wireless switch system installed in new Hyundai E&C apartments.
• Switches can be installed anywhere, power-free, with no wall work and no batteries.
• Dust- and water-resistant (IP57) switches can be installed in a wide range of indoor and outdoor spaces.
• Each wireless switch has a unique ID, so there is no radio interference.
• Being extended to other construction companies: Korea's top 10 builders as well as small and medium builders and interior companies.

3. System configuration

1. Self-powered wireless switch — Generates electricity from the press of a finger and sends an on/off RF signal
2. Hyundai E&C wireless switch — Custom switch case moulded exclusively for the client
3. Lighting control receiver — LED lighting control: DC receiver; general lighting control: AC receiver

4. Product specifications

Self-powered Wireless Switch (MWST-120)

• Size: W84 × D84 × H15 mm
• Weight: 35 g
• Frequency: 920.700 MHz (FSK)
• Antenna: Built-in antenna
• Transmission range: Approx. 100 m (open field)
• Power: Self-powered (no battery)
• Dust / water protection: IP57 (water-resistant for everyday use)
• Durability: Operates 100,000 times or more

AC receiver (MRAC-500)

• Size: W59 × D54.5 × H25 mm
• Weight: 25 g
• Frequency: 920.700 MHz (FSK)
• Antenna: Chip antenna
• Reception range: Approx. 100 m (open field)
• ID registration: Up to 10
• Display: Red LED (operation ON/OFF)
• External terminals: INPUT 2-pin, OUTPUT 2-pin
• Power: AC 110 – 240 V

DC receiver (MWSRD-500)

• Size: W43 × D30 × H7 mm
• Weight: 5 g
• Frequency: 920.700 MHz (FSK)
• Antenna: Chip antenna
• Reception range: Approx. 100 m (open field)
• ID registration: Up to 10
• Display: Red LED (operation ON/OFF)
• External terminals: VCC, GND, PWM OUTPUT
• Power: 3.3 – 6 V

5. Installation photos

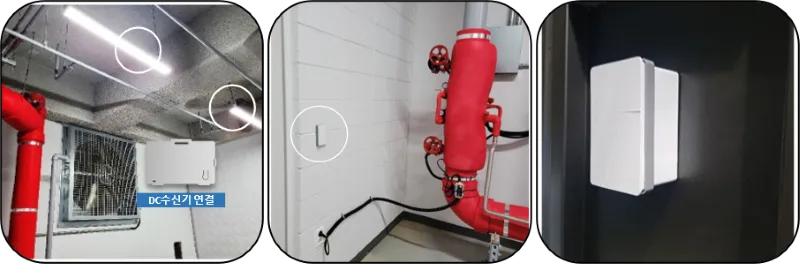

▶ Lights in the fan rooms and alarm valve rooms of the complex

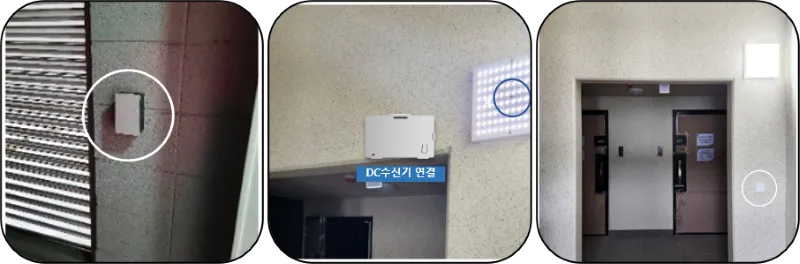

▶ Lights in front of the elevators on residential floors

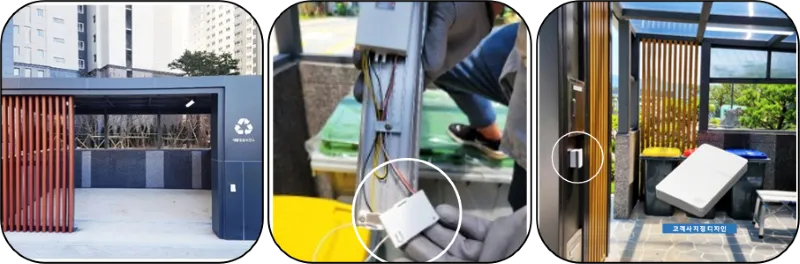

▶ Lighting control at the outdoor recycling storage area of the complex

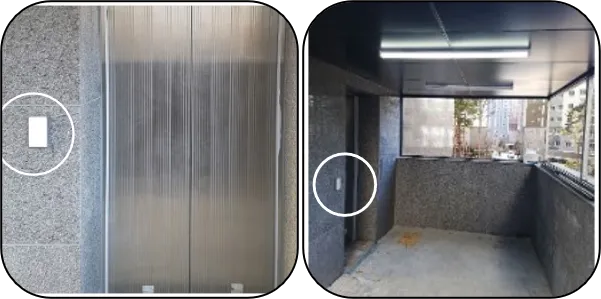

▶ Lighting control in front of the elevators
