TECHNOLOGY

Reliability Tests — 100,000 Cycles · IP57 Dust- and Waterproof

Before shipment, self-powered products undergo three tests to the same standard. The result: IP57 dust and water protection and 100,000 operations.

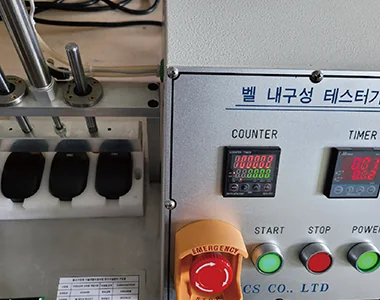

100,000-cycle operation test with an in-house built durability tester

Durability100,000-cycle operation test

We count the RF signal generated each time a self-powered product is pressed. We confirm that signals are still transmitted and received normally after 100,000 operations, and inspect the condition of internal parts after the test.

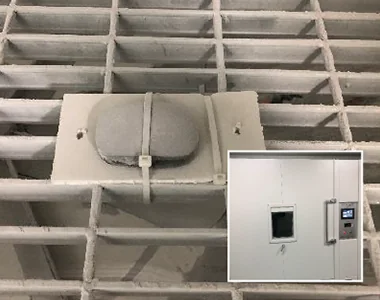

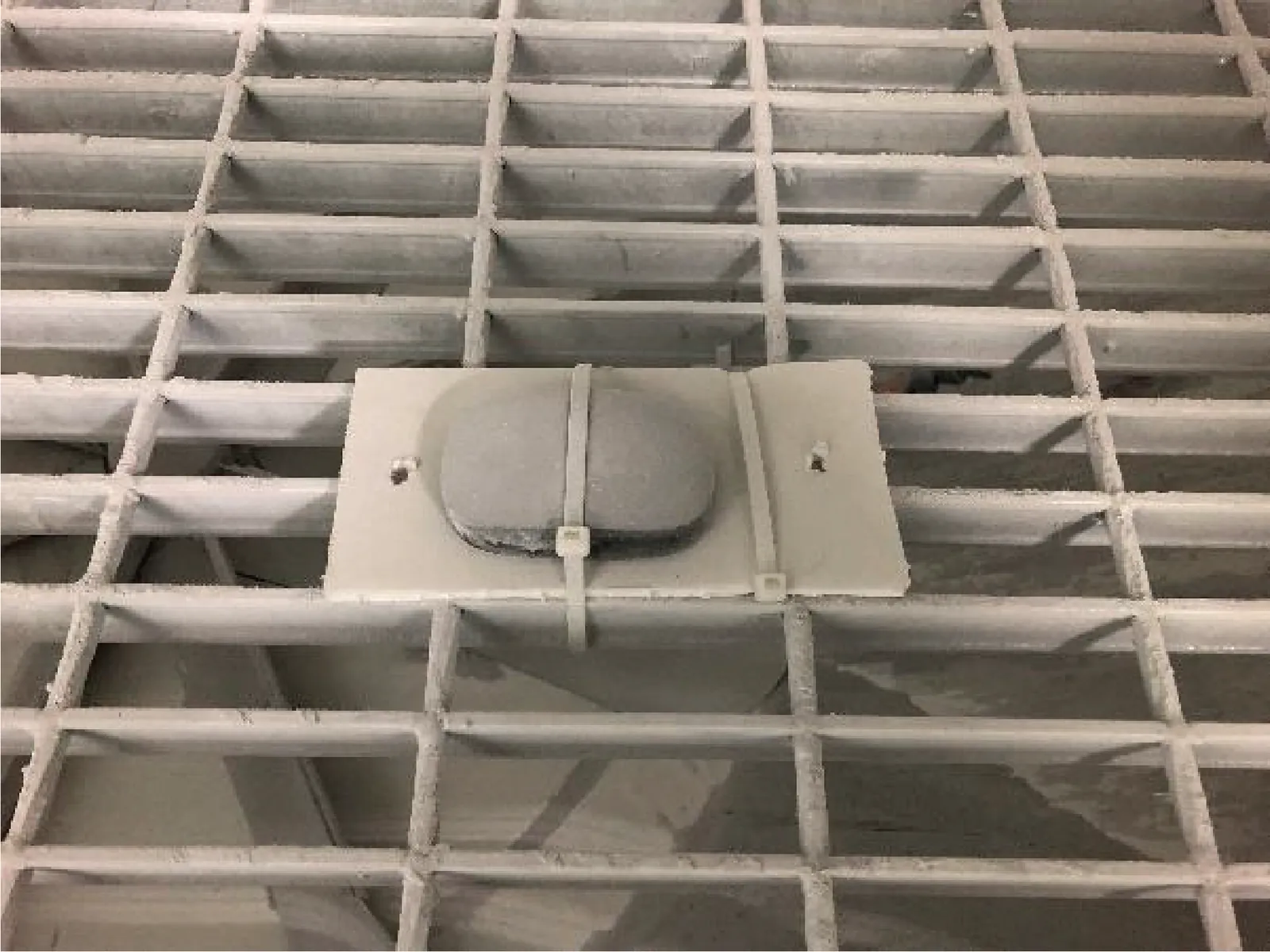

DustIP5X dust test

We confirm that no dust penetrates inside after 8 hours of exposure to dust (talc powder 50 – 75 ㎛, 2 kg/m³) per KS C IEC 60529.

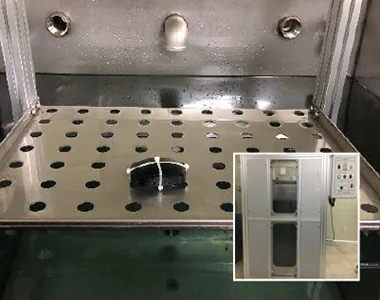

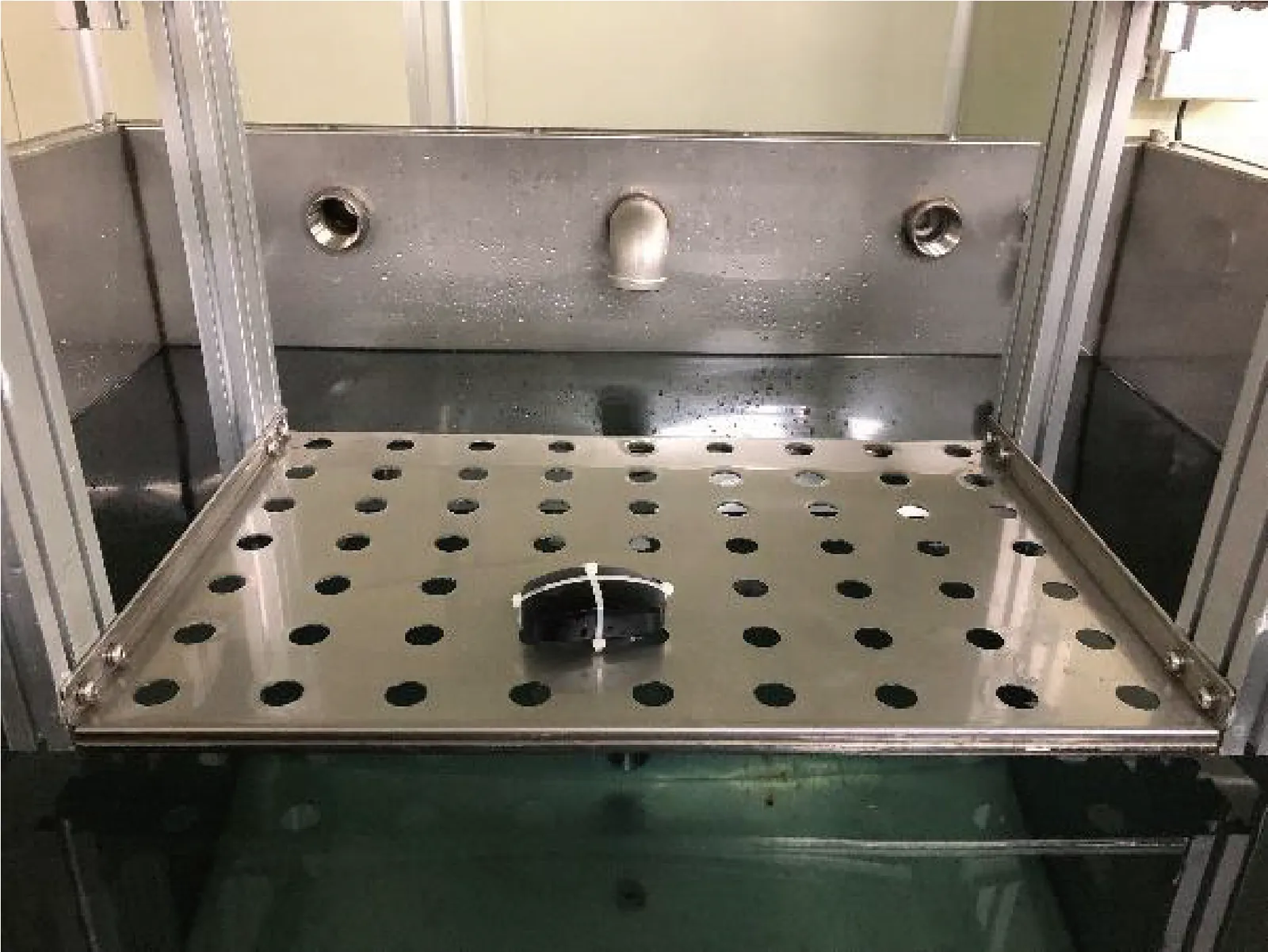

WaterIPX7 waterproof test

We confirm that no water droplets penetrate inside after 30 minutes of immersion in an immersion tank (1.0 × 1.0 × 1.2 m) per KS C IEC 60529.

Test & measurement equipment10

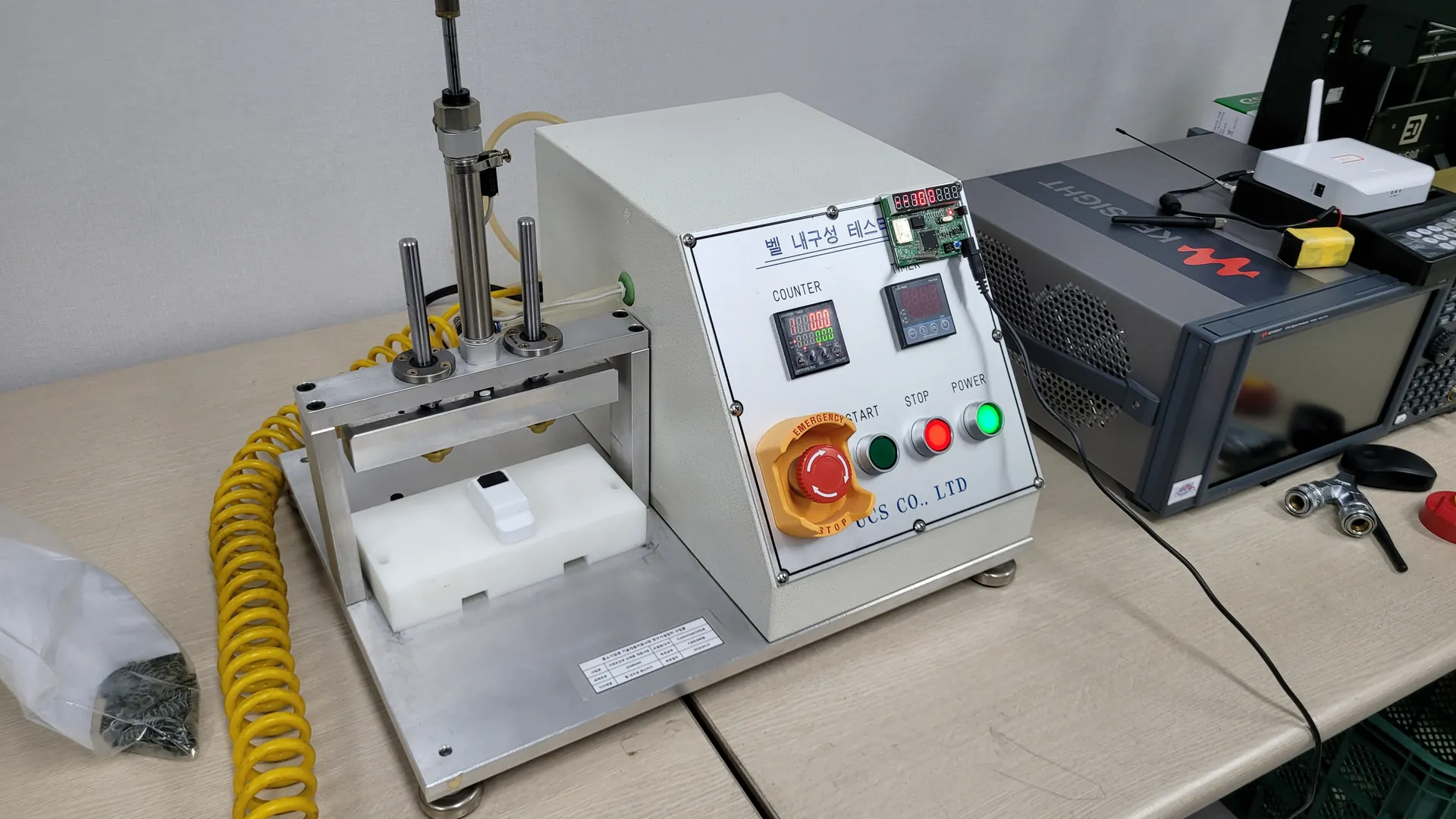

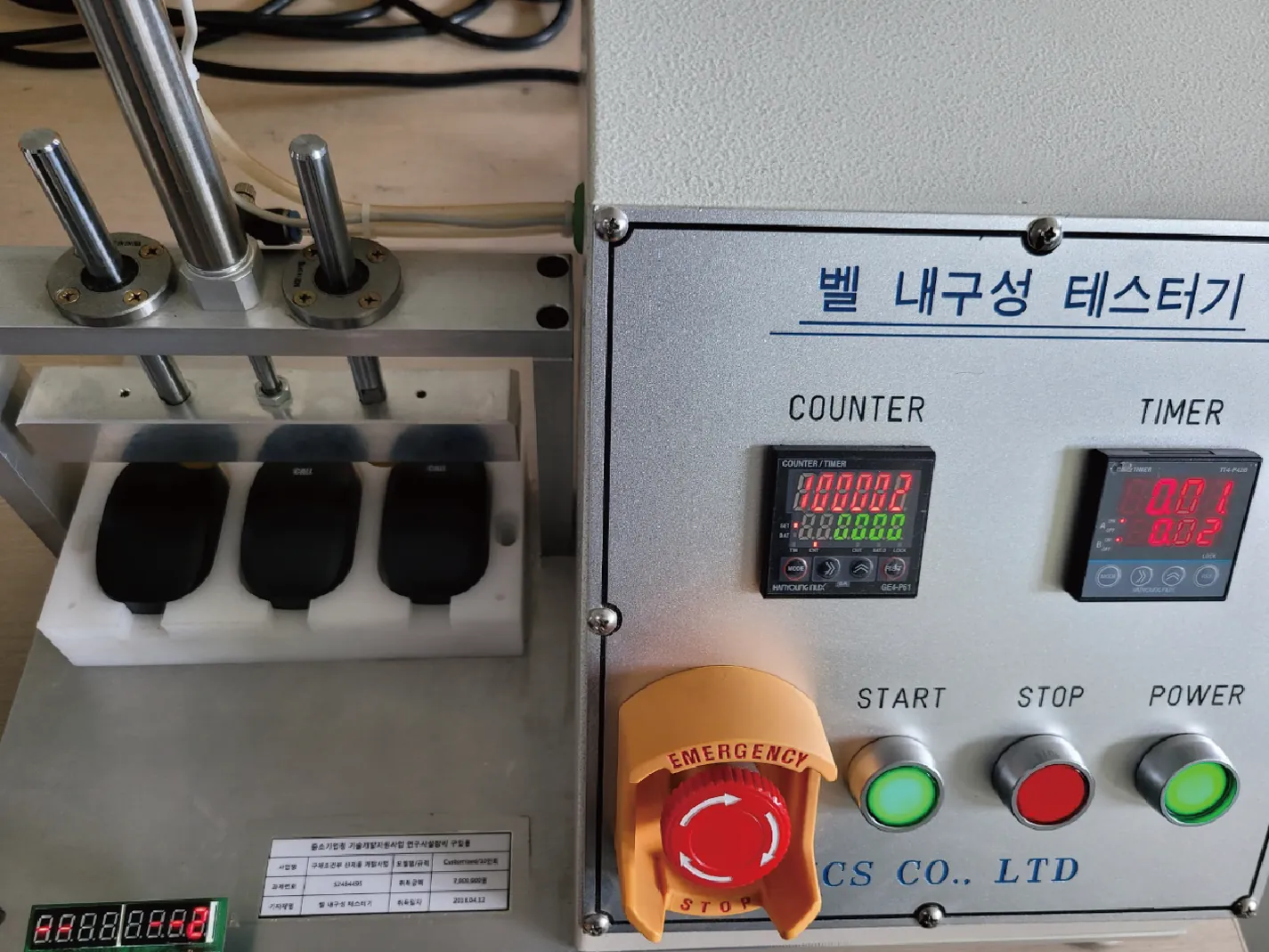

Bell endurance tester — 100,000-cycle test of a hinge-type bell

Door sensor endurance test — counter · timer

Gas valve open/close detection sensor simulator

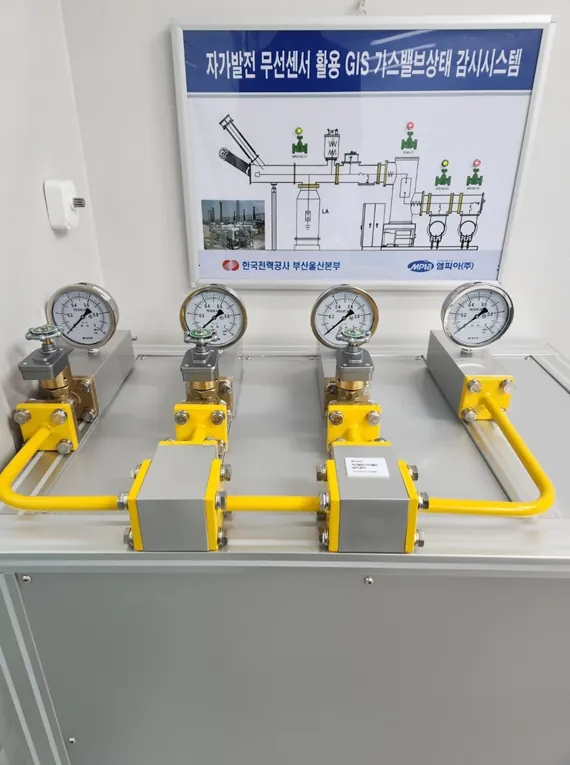

Gas valve simulator — GIS monitoring system model

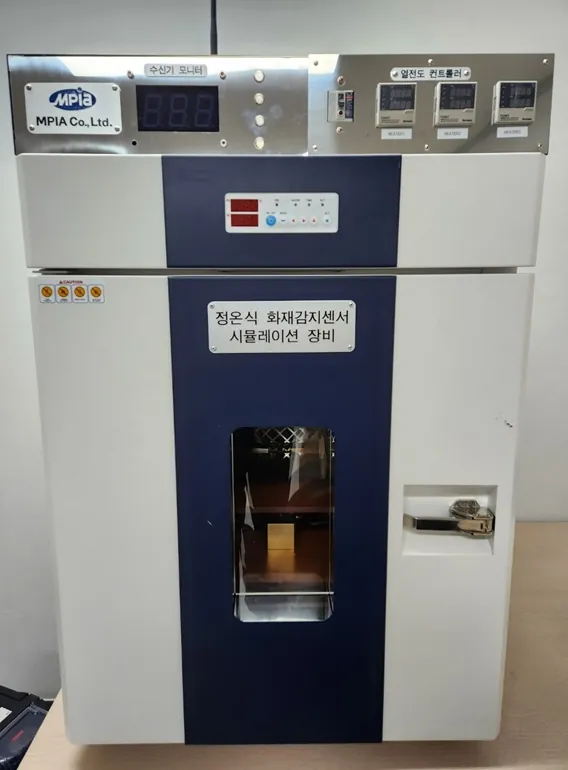

Fixed-temperature fire detection sensor simulation equipment

100,000Durability

IP5XDust8 h

IPX7Water30 min

Test · measurement equipment

Self-powered sensor durability tester (in-house built, 100,000 cycles)
Fixed-temperature fire detection sensor simulation equipment (heating · operation test per KFI standards)
Signal analyzer Keysight N9000B
Signal generator Keysight N5171B
Insulation resistance tester KIKUSUI TOS7200
Withstanding voltage tester AC 5 kV
